Two-Stage Motion for Elagance
SMOOVE ABSORBER is a motion control mechanism used in cinema and theater seating. In quiet environments, even small noises can disrupt the atmosphere. The SMOOVE ABSORBER ensures smooth and elegant seat movement through its unique two-stage motion. It opens quickly at first to secure the aisle space, then gradually slows down to a gentle close. This controlled motion absorbs impact and prevents bounce-back, delivering a quiet, refined, and premium experience.

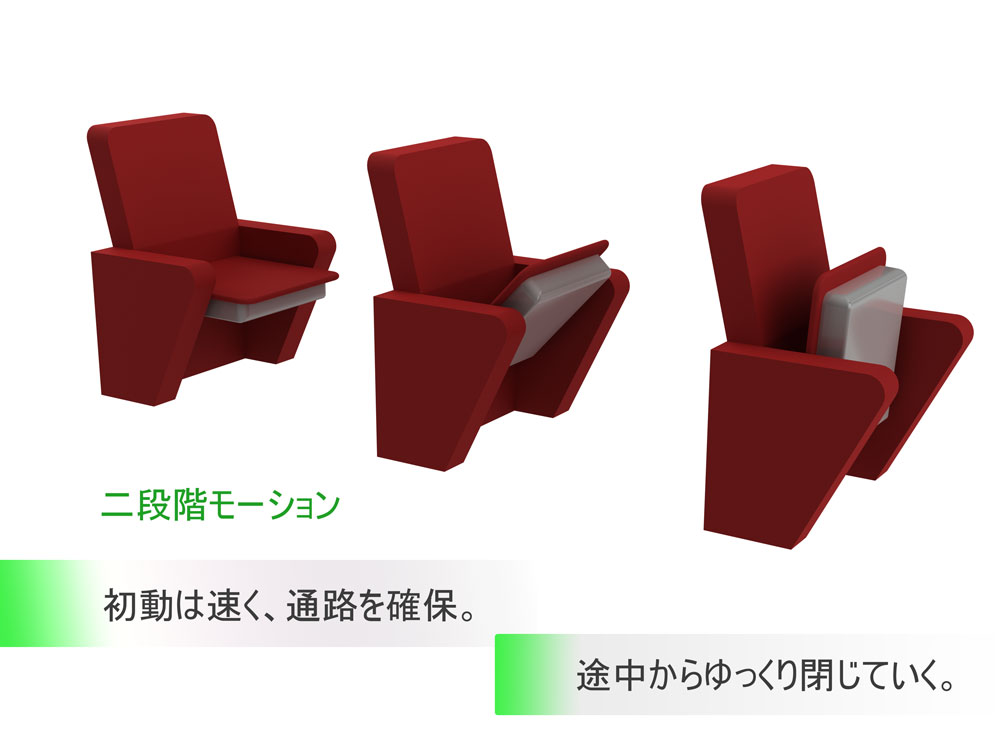

Two-Stage Motion Mechanism
Swift Initial Actuation – Quickly secures aisle space and ensures accurate seat positioning.
Gradual Midpoint Transition – Provides smooth, controlled motion for precise and refined operation.
Seamless motion engineered to deliver a luxurious, high-end experience.
Do any of these challenges sound familiar?

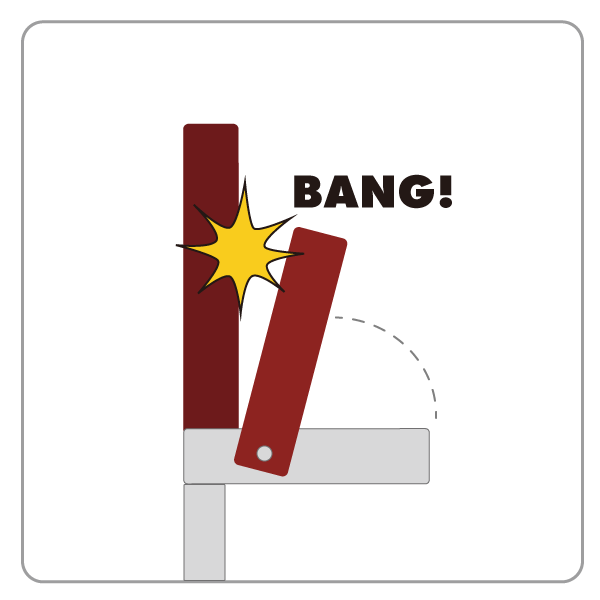

“In quiet environments, loud closing noises can be distracting.”
The SMOOVE Absorber solves this with its two-stage motion system: it moves quickly at first to secure aisle space, then gradually slows down to a gentle close. This controlled motion absorbs impact and prevents rebound, delivering a quiet, premium feel with every movement.

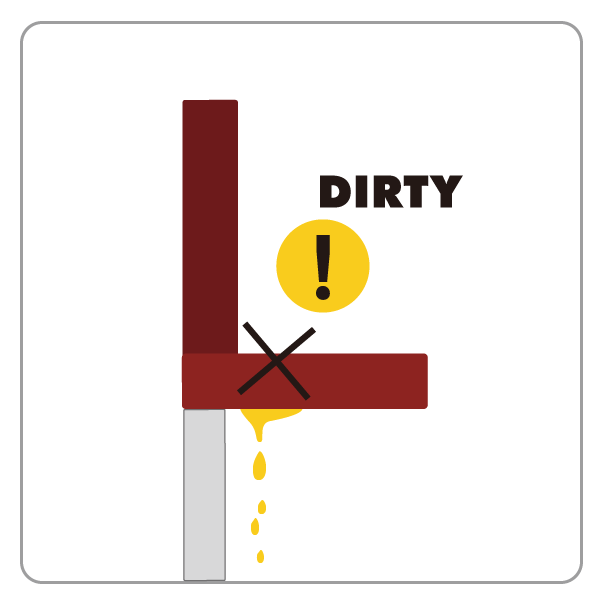

“Oil-based damping systems are prone to leakage”
Compared to oil dampers, the SMOOVE Absorber offers a more cost-effective installation and eliminates concerns about oil leaks and stains,making maintenance simpler and cleaner.

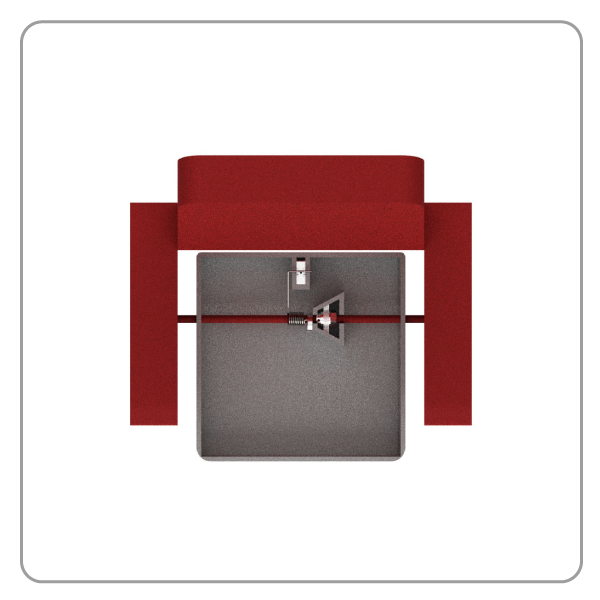

“Compact in size. Elegant in motion.”
The seat’s internal mechanism is highly compact, engineered to deliver smooth, refined motion while fitting neatly into tight spaces.

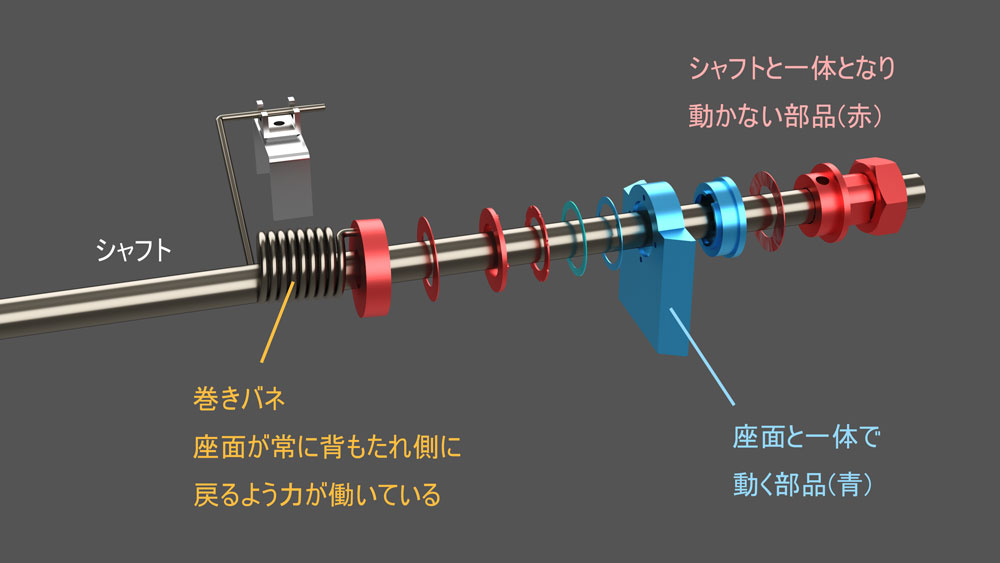

“Internal structure”
- 01.Shaft
- 02.Coiled Spring – Generates a continuous restoring force that returns the seat to its default upright (backrest) position.
- 03.Fixed Components (Red) – These parts are fixed and integrated with the shaft.
- 04.Moving Component(Blue) -Components that operate in conjunction with the seat, enabling smooth and controlled movement.
The mechanism generates friction, allowing the seat to return slowly toward the backrest.

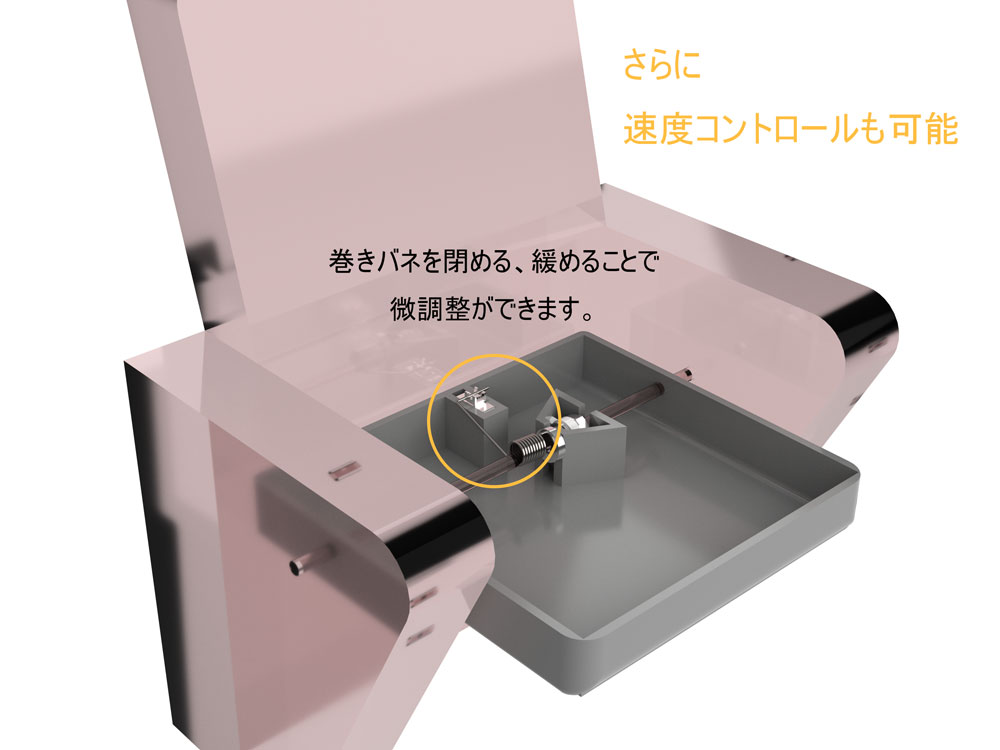

Additionally Speed Control Capability
Fine-tuned adjustments are achieved by opening or tightening the spring mechanism.
Key Features of SMOOVE ABSORBER
Quiet Operation
Closes silently to maintain the calm and undisturbed atmosphere of quiet environments.
Automatic Folding for Aisle Clearance
The mechanism automatically folds the seat when the user stands, helping to ensure aisle space is secured in narrow theater layouts and preventing seats from being left open.
Shock Absorption with Premium Feel
The seat moves swiftly at first to quickly clear the aisle, then transitions into a gentle, controlled close. This motion absorbs impact and prevents bounce-back, delivering a smooth, refined, and high-end user experience.
Cost-Effective Compared to Oil Dampers
Compared to oil dampers, it offers a more cost-effective installation and eliminates the risk of oil leakage that could stain the seat.
Proven Durability: Tested Over 50,000 Cycles
The seat has passed rigorous in-house durability testing, with repeated opening and closing operations confirming compliance with our internal quality standards.
